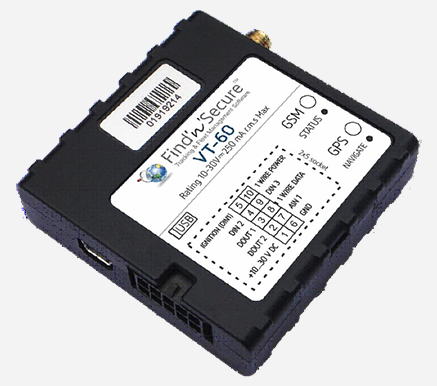

VT-60 is light real-time tracking terminal with GPS/GLONASS and GSM connectivity, which is able to collect device coordinates and other useful data and transfer them via GSM network to server . This device is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies personal cars and so on. In case of losing connection VT-60 can store up to 8000 records, and once the connection is established the device will send stored data via GPRS. So you won't lose your data (coordinates, sensors data and etc.). VT-60 can perform tasks on remote objects,such as monitoring engine status, controlling truck's door etc.

FEATURES

  • Any element event triggers (external sensor, input, speed, temperature, etc.); Highly configurable data acquisition and sending.
  • Exception-based reporting based on time, distance, Geofence or other criteria reduces operating costs without sacrificing functionality.
  • Multiple Geo-fence areas.
  • Deep sleep mode.
  • Configurable scenarios available; Real-time process monitoring.
  • Authorized number list for remote access; Firmware update over GPRS or USB port.
  • Configuration update over GPRS, SMS or USB port.
  • TCP/IP or UDP/IP protocol support.
  • 8000 record storing.

Specification

GSM Specification

Parameter Description
Frequency Quad-band 900/1800 MHz; 850/1900 MHz
GPRS GPRS class 10 (up to 85,6 kbps)
SMS Text/ Data

GPS Specification

Parameter Description
GPS Chipset Skytraq 65 channel receiver; Up to -161 dBm sensitivity
uBlox NEO-6 50 channel receiver; Up to -160 dBm sensitivity
Channel 32 channel GPS/GLONASS receiver
Protocol NMEA, GGA, GGL, GSA, GSV, RMC, VTG

Interfaces

Parameter Description
Power supply 10 ÷ 30V DC
USB Interface For external power and configuration
Digital Inputs 3 (Digital Input- 1 Reserved for Ignition)
Analog Input 1
Digital Outputs 2 Open Collector outputs
Status LEDs 2 (GPS and GPRS)
USB Port Mini USB port
